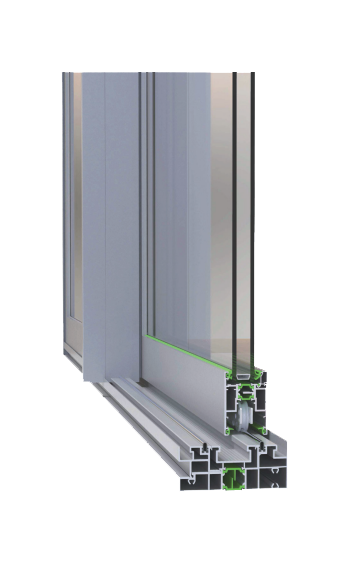

ZT127 Lift Sliding Door

OPEN AND CLOSE QUIET ENJOYMENT ARTISTIC LIFE

Product Specifications
☆ Designed of declining principle with high to low, with adequate passage line for improving the drainage.
☆ Sturdy and rugges design fulfilling the bigger size and heavy duty sliding doors
☆ Intelligent prodcts equippend with intelligent drive for lift + intelligent sliding door locks
☆ Lifting and sliding via the narrow edge enlarging the overall visual fields of the windows
☆ Heavy load stainless sliding rails enabling the windows openning more smoothly
☆ Thermal isolation using the Oversized double glazing units with effective soundproofing
Tehnical Parameters
Thickness Frame：127mm
Thickness Openning：52mm
Thickness Profile：2.0mm
Visual field：Frame/Openning35mm (Small70mm/Large90mm)
Glass configuration：6+18A+6mm
Product Configuration
Hardwares：CMECH system hardware
Nsulation strips：national standard PA66GF25
Adhesive strips:：high performance EPDM
The Openning
Lifting/Sliding
Product Performance
Thermal isolation：grade 9
Soundproofing：grade 4
Airtightness：grade 8
Wind pressure resistance：grade 9
Waterproofing：grade 4
Application Scenario

图片1.png   Balcony    图片2.png  Kitchen
