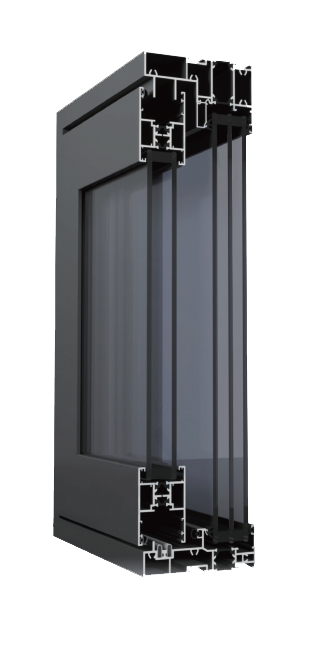

CY118 Side Compression Windows

REVITALIZING HOME EXPERIENCE LEADING QUALITY LIFE

Product Specifications
☆ Multi water-tight design and drainage structure for effective prevention of rain water penetrating
☆ Pressed by offset of 6mm with two EPDM strips achieving super-high seal tightness
☆ Designed by clines with closed cavity, hooks strengthness and multi locks for better seal-tightness
☆ Using sepcially designed extrusion seal structure for better air-tightness and water-tightness
☆ Window opennings using soft sliding mechanism without oppcuping the interior living space
☆ Extra large visual field and extremely narrow frame holding the glasses without any installation risk
☆ Folded window screen + glass handrail Safe and aesthetic appearance with anti-mosquito and anti-wind functions
Tehnical Parameters
Thickness Frame：118mm
Thickness Openning：47mm
Thickness Profile：1.8mm
Visual field：Frame44mm/Openning55mm
Glass configuration：5+20A+5mm
Product Configuration
Hardwares：HaoBo
Nsulation strips：national standard PA66GF25
Adhesive strips:：High performance EPDM
Glass：Fixed Glass configuration 5+10A+5+10A+5mm
Option：Surface treatment: metallic powder
The Openning
Sliding
Product Performance
Thermal isolation：grade 8
Soundproofing：grade 4
Airtightness：grade 8
Wind pressure resistance：grade 8
Waterproofing：grade 4
Application Scenario

图片1.png   Balcony 图片2.png  Kitchen
