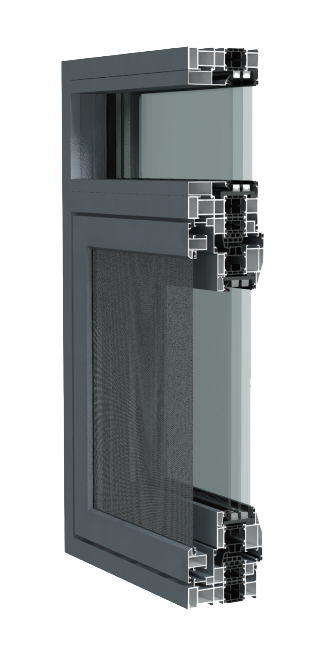

WK118 Outward Openning Windows Screen Integrated

START A DIALOGUE WITH NATURE

Product Specifications
☆ Glue injected via pin-screws to the corners for increasing strength and waterproffing
☆ Heavy load hidden hinges and continuous seal-strips enhancing the air-tightness, safe and aestheticc
☆ Designed with fixed and inclined press-lines resulting in more safety and narrow frame effects
☆ Openning outward without occupying the interior living space, avoiding bumps
☆ Structure of three seal-layers with combination of soft and hard sealant strips intensfying the airtightness and soundproofing of the whole window
☆ Using multi-chambers thermal isolation strips and vertical isotherm structure to reduce the heat conduction and thermal convection, thus better thermal functionality
☆ Window and screen are designed in one unit, high transparent vajro net with flat outward salnting design succinct and aesthetic
Tehnical Parameters
Thickness Frame：118mm
Thickness Openning：80mm
Thickness Profile：2.0mm
Visual field：Frame32mm/Openning78mm
Glass configuration：5+12A+5+12A+5mm
Loads of Hardwares:120KG
Product Configuration
Hardwares：XiMeiKe
Nsulation strips：Baotai multi-chambers PA66GF25
Adhesive strips:：micro-wave welded
Corner：swelled splitting corners
The Openning
Glass Openning outward, Screen Window inward
Product Performance
Thermal isolation：grade 9
Soundproofing：grade 4
Airtightness：grade 8
Wind pressure resistance：grade 9
Waterproofing：grade 4
Application Scenario

图片1.png   Balcony  图片2.png  Kitchen  图片3.png  Bathroom  图片4.png  Bedroom
