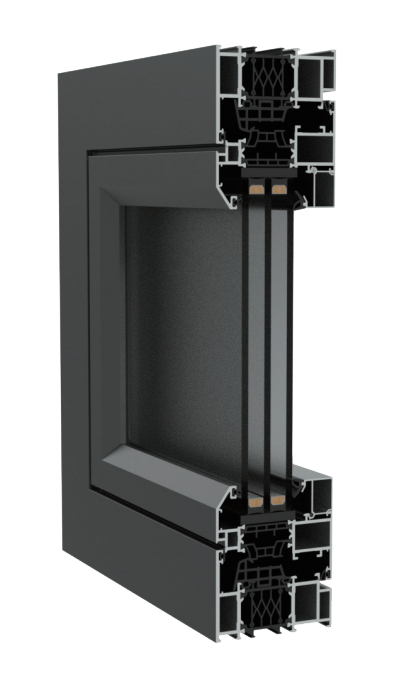

UE90 Inward Opening Windows

PERFECTION AND QUALITY PROTECT THOUSANDS OF FAMILY LIFE

Product Specifications
☆ Glue injected via screw to swelled corners: increasing the strength and water-proofing of the corners
☆ Corner protection practice: enhancing the safety protection, simple and aesthetic
☆ Designed as closed clines: improving the overall wind pressure resistance
☆ Designed with floor drainage and water drip-line accelerating drainage of rain-water and protecting rain water from backwards flow
☆ Structure of three seal-layers with combination of soft and hard sealant strips intensfying the airtightness and soundproofing of the whole window
☆ The sixth generation of thermal isolation strip being utilized togther with vertical isotherm structure thus reducing the heat conduction and thermal convection
☆ Using middle supporter to lock glue injected corners tightly so as to enhance the strength to against wind pressure and improve waterproofing
☆ Key positions using profiles with thickness of 2.6mm while main positions profiles with thickness of 2.2mm, are far more above the national standards, can well standing against wind-pressure, twist, warp etc. caused by abnormal weather.
Tehnical Parameters
Thickness Frame：90mm
Thickness Openning：90mm
Thickness Profile：2.2mm
Visual field：Frame40mm/Openning49mm
Glass configuration：5+12A+5+12A+5mm
Loads of Hardwares:140KG
Product Configuration
Hardwares：XiMeiKe
Nsulation strips：Baotai PA66GF25
Adhesive strips:：micro-wave welded
Glass：4SG super glasses
Corner：swelled splitting corners
The Openning
Glass Openning inside and inward
Product Performance
Thermal isolation：grade 9
Soundproofing：grade 5
Airtightness：grade 8
Wind pressure resistance：grade 9
Waterproofing：grade 4
Application Scenario

图片1.png   Balcony   图片2.png   Kitchen   图片3.png   Bathroom   图片4.png   Bedroom
