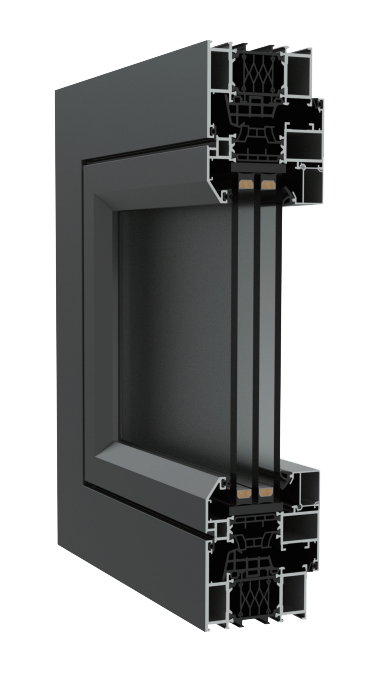

UE80 Inward Opening Windows

FRAME THE SCENE INTO THE FLOW OF ART

Product Specifications
☆ Glue injected via screw to swelled corners: increasing the strength and water-proofing of the corners
☆ Corner protection practice: enhancing the safety protection, simple and aesthetic
☆ Designed as closed clines: improving the overall wind pressure resistance
☆ Designed with floor drainage and water drip-line accelerating drainage of rain-water and protecting rain water from backwards flow
☆ Structure of three seal-layers with combination of soft and hard sealant strips intensfying the airtightness and soundproofing of the whole window
☆ The sixth generation of thermal isolation strip being utilized togther with vertical isotherm structure thus reducing the heat conduction and thermal convection
☆ Key positions using profiles with thickness of 2.6mm while main positions profiles with thickness of 2.2mm, are far more above the national standards, can well standing against wind-pressure, twist, warp etc. caused by abnormal weather.
☆ Using middle supporter to lock glue injected corners tightly so as to enhance the strength to against wind pressure and improve waterproofing
Tehnical Parameters
Thickness Frame：80mm
Thickness Openning：90mm
Thickness Profile：2.2mm
Visual field：Frame40mm/Openning49mm
Glass configuration：5+12A+5+12A+5mm
Loads of Hardwares:140KG
Product Configuration
Hardwares：MeiXiKe
Nsulation strips：Baotai PA66GF25
Adhesive strips:：micro-wave welded
Glass：4SG super glasses
Corner：swelled splitting corners
The Openning
Glass Openning inside and inward
Product Performance
Thermal isolation：grade 9
Soundproofing：grade 5
Airtightness：grade 8
Wind pressure resistance：grade 9
Waterproofing：grade 4
Application Scenario

图片1.png   Balcony   图片2.png   Kitchen   图片3.png   Bathroom   图片4.png   Bedroom
