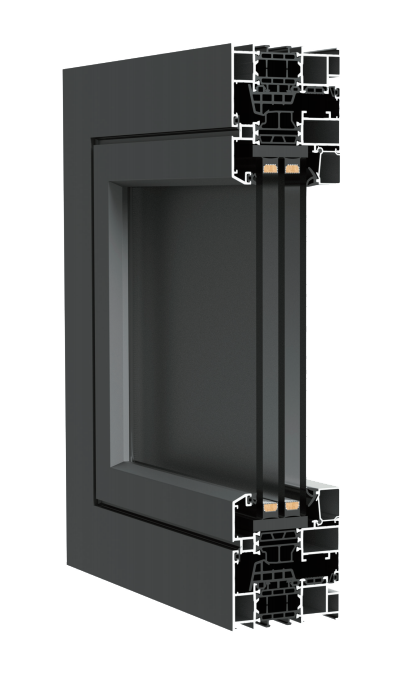

UC85 Inward Opening Windows

A QUIET ROOM IN THE WORLD TO FIND MY TRUE SELF

Product Specifications
☆ Glue injected via screw to corners: increasing the strength and water-proofing of the corners
☆ Corner protection practice: enhancing the safety protection, simple and aesthetic
☆ Designed as closed clines: improving the overall wind pressure resistance
☆ Anti-wind and anti-water backwards flow techniques accelerating drainage of rain-water and protecting rain-water from backwards flow
☆ Structure of three seal-layers with combination of soft and hard sealant strips intensfying the airtightness and soundproofing of the whole window
☆ Using middle supporter to lock glue injected corners tightly so as to enhance the strength to against wind pressure and improve waterproofing
☆ The fifth generation of thermal insulation-strip techniques with multi-chambers being utilized togther with vertical isotherm structure thus reducing the heat conduction and thermal convection, advanced thermal properties
Tehnical Parameters
Thickness Frame：85mm
Thickness Openning：85mm
Thickness Profile：1.8mm
Visual field：Frame32mm/Openning46mm
Glass configuration：5+12A+5+12A+5mm
Product Configuration
Hardwares：Haobo/hidden hardwares
Nsulation strips：Boatai multi-chambers PA66GF25
Adhesive strips:：micro-wave welded
Glass：three layers toughened glazing
The Openning
Glass Openning inside and inward
Product Performance
Thermal isolation：grade 9
Soundproofing：grade 5
Airtightness：grade 8
Wind pressure resistance：grade 9
Waterproofing：grade 4
Application Scenario

图片1.png   Balcony   图片2.png   Kitchen   图片3.png   Bathroom   图片4.png   Bedroom
